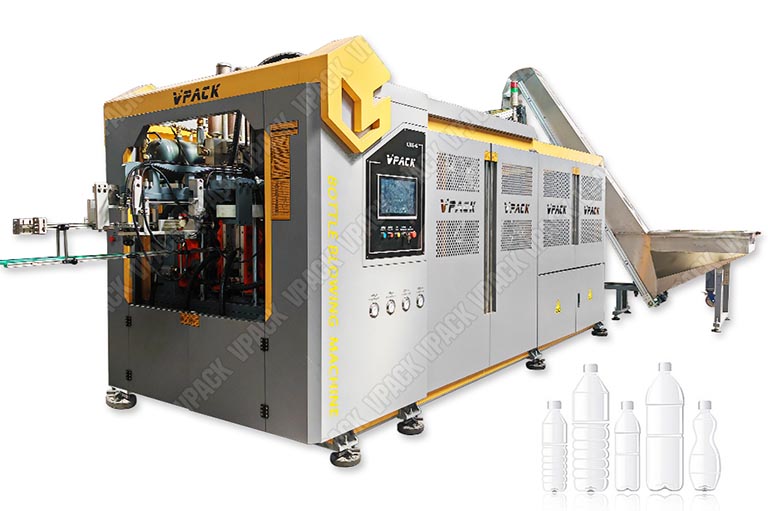

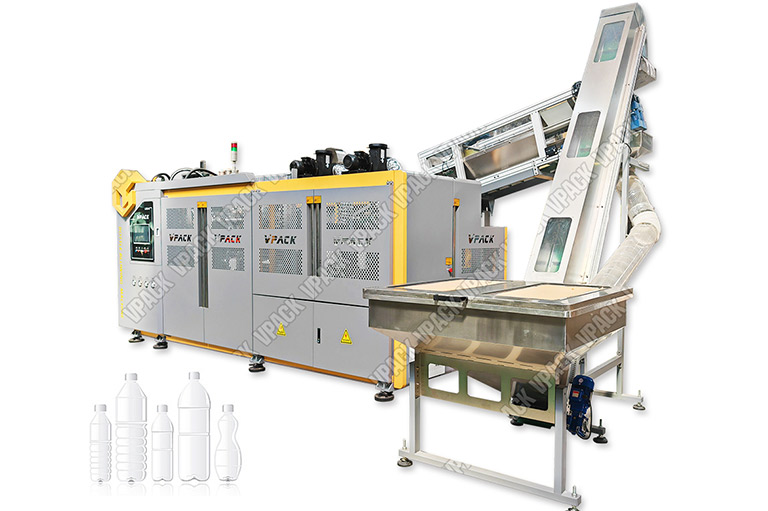

14000BPH Bottle Blowing Molding Machine
Product Description

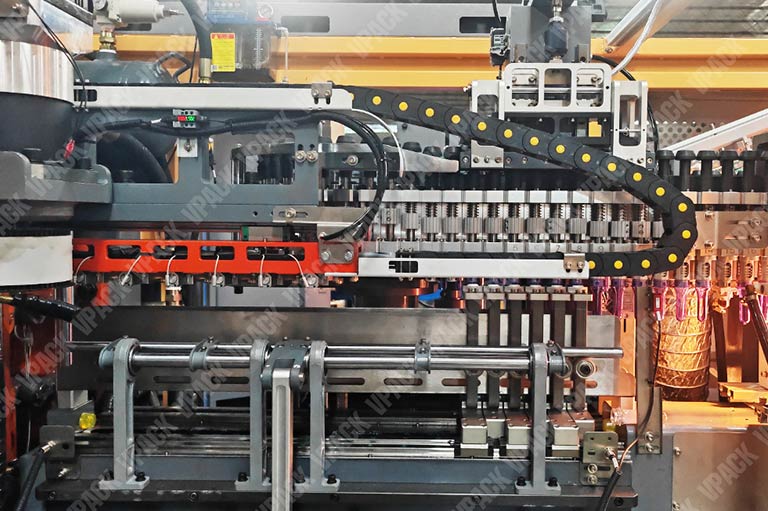

Servo Stretching System
The servo motor drives the stretching system, which drives the gear rack for stretching.
The self-developed photoelectric limit and mechanical limit dual protection mode prevents the stretching rod from touching the bottom mold.
The first and second blow cycle times can be adjusted separately on the console.
According to the different preforms and different bottle shapes of customers, the stretching rod can be automatically adjusted, which is highly flexible.

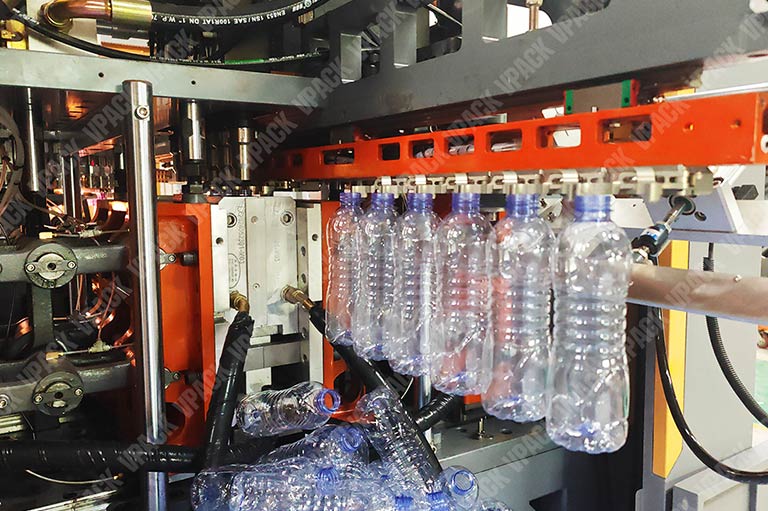

Servo Mold Clamping System
The mold clamping system is driven by a servo motor and a mechanical linkage transmission.
The mold and the bottom mold are synchronously clamped by a servo motor.
The back of the mold frame is equipped with a high-pressure booster plate and high-pressure clamping, which effectively reduces the visibility of the mold clamping line of the finished bottle and ensures the quality of the bottle.
The mold adopts a drawer structure, which is easy to replace the mold, and the operator can complete it within half an hour.
Product Paramenters
Machine Features
- Stable performance with advanced PLC.
- Automatic preform conveyer to save human cost.

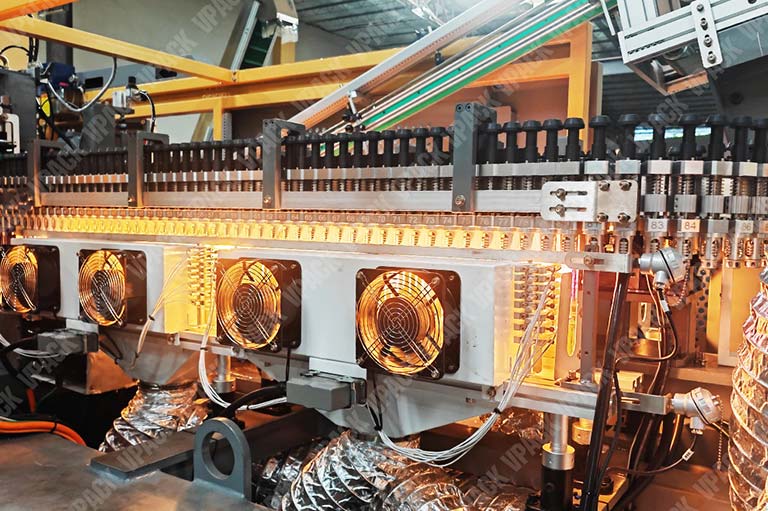

- Preform self-rotation and infrared pre-heater revolution.
- Security automatic-locking device in each mechanical action.
- Introduce the FESTO air cylinder to avoid contamination and noise.
- Two ways of operating: automatic and manual.
