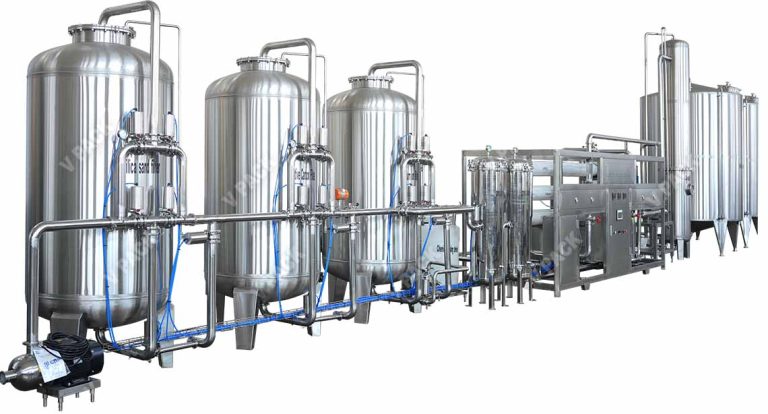

Water Treatment Purified System
Product Description
The water treatment system is designed to purify raw water to drinkable standards through three-stage filtration, uv and ozone sterilization.

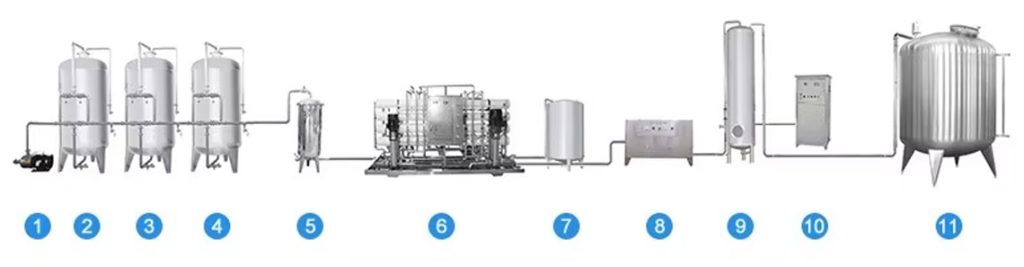

WATER TREATMENT SYSTEM
- 1.Water Pump
- 2.Silica Sand Filter
- 3.Active Carbon Filter
- 4.Sodiumion Exchanger
- 5.Precision Filter
- 6.Reverse Osmosis
- 7.RO Buffer Tank
- 8.UV
- 9.Ozone Mixing Tower
- 10.Ozone Generator
- 11.Water Tank

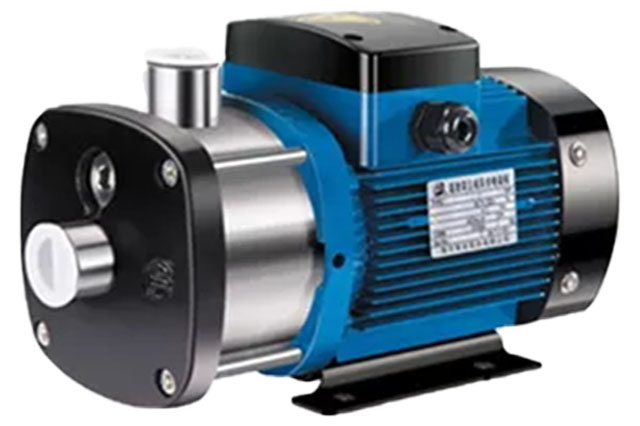

Pump
- Brand: High quality, China Nanfang Southern
- Pump keep the p-ressure at the correct leveland ensure it runs smoothly.
Silica Sand Filter
- Quartz sandRemove suspended solids, organic matter, colloidalparticles, microorganisms,
- When the water through the machine,it machine will stop suspend substance through the good quality silica sand.
- And also protect the following machines and also clean the water.
- This machin e can achieve the back washing itself through the manual valve device, and can prolong the life of machine also.

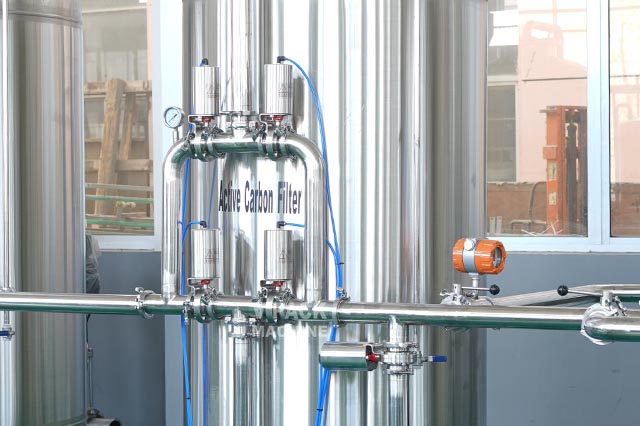

Active Carbon Filter
- Activate carbon remove contaminants such as organicmaterials,odor, color.
- This equipment can remove heavy metal such as mercury,lead,cadmium, zink iron,maganese and hromium and hydrogenate,sulphide and so on.
- It also could remove hydride, sulfuret and so on macromolecular compound ,then make the water asepsis and sans taste.
- we could use manual working vlave to finish reverse washing.
Sodium Ion Exchanger
- Cationic resin used for water softening,
- Resin remove Ca 2+ mg 2+.
- Primarily to remove hardness of water.
- So as to effectively prevent the reverse osmosis membrane fouling.
- System can automatically recoil, and so is red.

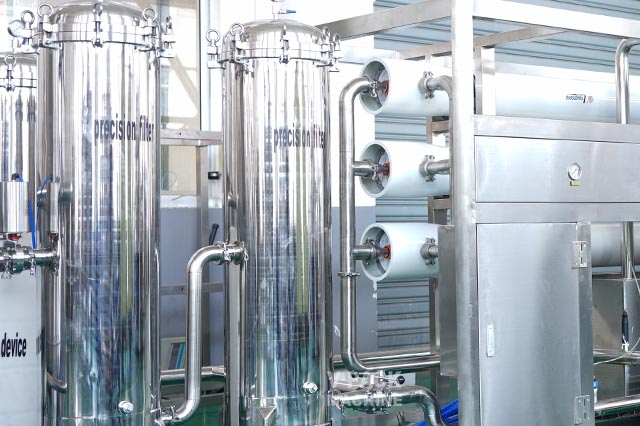

Precision Filter
- This machine is made of stainless steel as a small tank.
- Contains precision filter membrane.
- Cut-off mechanical impurities and particles greater than 5μM leaks from preposing equipment and pipeline.
Reverse Osmosis
- The Reverse Osmosis device is an equipment to purify the saline water with the action of pressure difference of semi-permeable membrane.
- The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid, microorganism, particles and organic materials.
- RO with reverse washing tank-RO is the heart of water treatment system.
- So we prepared the washing tank with clean the inside of RO to make the RO membranes work longer.
- Low energy consumption, no pollution, simple technique, high-quality water and convenient operation and maintenance.
UV Sterilize
- It uses the UV to kill some bacteria that may also pass through the reverse osmosis system.
- Disinfect tube adopt high -quality stainless steel.
- The material can reflect ultraviolet rays efficiently.
- Will not produce pollution while using , accord with the hygienic requirements of food industry.
- Tube built-in ultraviolet lamp and quartz glass tube, disinfect tube for airtight container
Ozone Generator
- Four connections installed on the ozone generator: air inlet/Ozone outlet/chilling water inlet/chilling water outlet.
- Some bacteria may not be killed by UV, the sterilizer uses ozone to kill those bacteria.
Ozone Mixing Tower
- We use stainless steel 316 for ozonetower,as it can resist Ozone very well than SS304.
- The working life will be much longer.
Product Paramenters
