Automatic Heat Shrink Wrapping Machine
Product Description
Product Parameters
- Capacity：10~12 bags/min
- Size：L5050×W3300×H2100mm
- Shrink Membrane Material：PE、PVC、POF
- Hot Shrink Highest Temperature 160 - 260°， (adjust by oneself).
- Power：20kw
- Voltage：380/220V
- Weight：1.2T
Product Parameters
- Capacity：12~15 bags/min
- Size：L7550×W1280×H2150mm
- Shrink Membrane Material：PE、PVC、POF
- Hot Shrink Highest Temperature 160 - 260°， (adjust by oneself).
- Shrink Width: 0.03-0.15mm
- Power：30kw
- Voltage：380/220V
- Weight：1.5T
Product Parameters
- Capacity：15~18 bags/min
- Shrinkage Machine：4200×1100×1700mm
- Wrappage Max Size：L2400×W650×H450mm
- Shrink Membrane Material：PE、PVC、POF
- Hot Shrink Highest Temperature 160 - 260°， (adjust by oneself).
- Facility Overall Size: Main Equipment：L12000×W1100×H2100mm
- Shrinkage Film Thickenss：0.03-0.15mm
- Power：30kw
- Pressure Requirement：380V/50-60HZ
- Weight：2.5T
Product Introduction
The aircraft used in the pallet with film packaging,widely used in drinks,beer,chemical,food,pharmaceutical and other industries.
The whole pneumatic expansion support film roll,for the film quickly takes about two minutes to change the film.
The film tension transportation,smooth,and precise control of the cutting film neat incision.
Supporting German Siemens, Germany P+F, Japan SMC, Italy motorcycle Rio, the world’s most advanced control System components, equipment, stable operation.
Main Features
1. It has fill-auto characteristics, such as conveying materials, ordering bottles, wrapping film, shrinking, cooling and shaping and others.
2. It adopts advanced film thermal sealing technology. The seal seam is clear. It is firmer and more beautiful.
3. Conveying film adopts induced switch control. Adjust the conveying film length reliably and reduce consumption.
4. The conveying motor adopts imported frequency converter control. Its conveying is smooth and the stepless govern is carried out.
5. It adopts advanced screw air supplying circulating structure and 3-layer insulating treatment. Then wrapping is firm and save energy.
6. Strengthening type cooling shaping channel make the package film form high-strength state and the transportation and storage is convenient.
Product Parameters
- Capacity：6~8 bags/min
- Shrink Membrane Material：PE、PVC、POF
- Hot Shrink Highest Temperature 160 - 260°， (adjust by oneself).
- Power：19kw

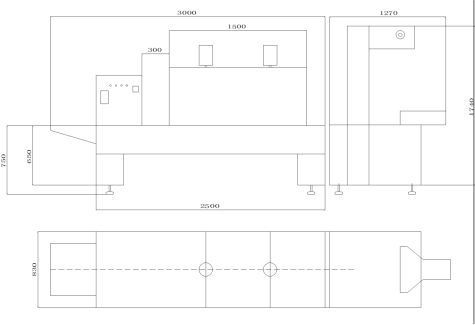

- Size：L4270×W830×H1740mm
- Shrink Width: 0.03-0.15mm
- Voltage：380/220V
- Weight：900KG
