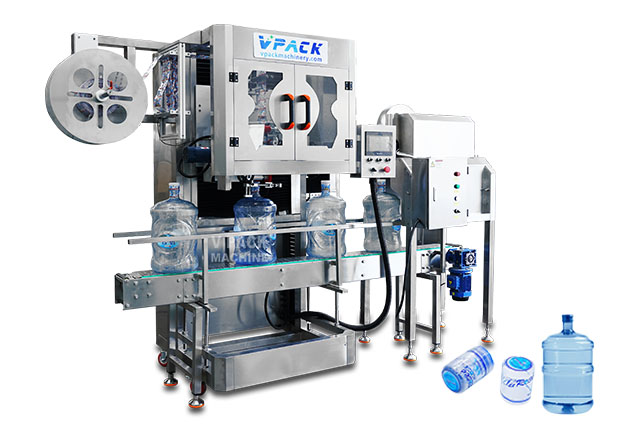

Automatic Barrel Mouth Neck Labeling Machine
Product Description
Main Features
- Cover the circle label on the pet bottle.
- Hot shrinking to fix on the position which bottle body is designed.
- Suitable for the production line of different direction and different height.
- The machinery part adopts combination designing of modularization,and makes the machine resonable.
- The height adjustment adopts motor fluctuating;it is convenient to replace the material.
- The special cutter head designing,make the film-rolling cut more correct and reliable.
1.Cutter Heat Unit
- The new cutter driven by servo motor is fast, more stable and accurate, and shrinks perfectly.
- Synchronous locating device enables the tolerable error to ±1mm.
- Unit cutter head plane design in China which apply to the container of ∮30mm—∮130mm.
Cutter Heat Unit
- Cutter head original transducer is inside the cutter head.
- You take down cutter head, you donot need to correct the synchronous belt.
- It also has unique light touch human-machine screen.
- The new design of cutter adopt step motor with high speed, stable and exact movement, trim cut place and perfect shrink.
2.Label Feeding Unit
- It adopts rotary potentiometer which enable the label feeding stable.
- Fluent and avoid the error label length,label block and other problem when label feeding servo convey the label.
Label Feeding Unit
- It adopt double material shelf which enable the change of label more convenient and fast.
- There is label checking photoelectricity.
- When there is no material, it will stop automatically and give alarm light and also display on the touch screen.
Product Paramenters
