Water Filling Machine
This Drink water bottle filling machine / equipment / production line used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
Usage

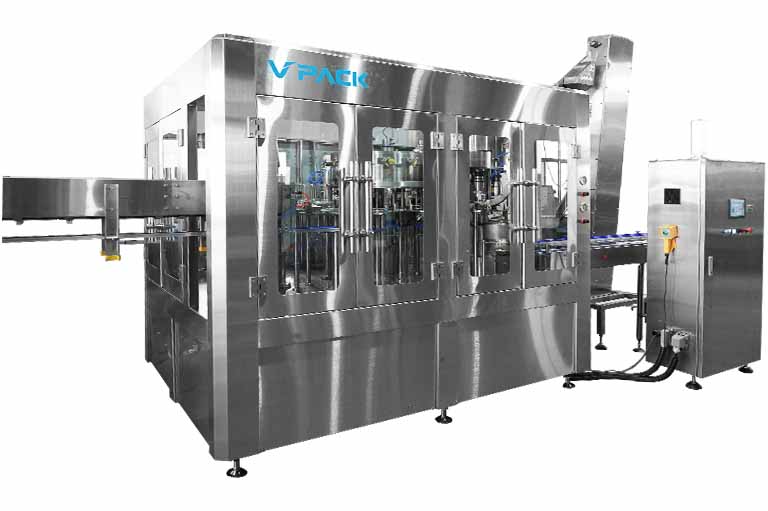

Water Washing Filling capping 3in1 Monoblock Mahchine

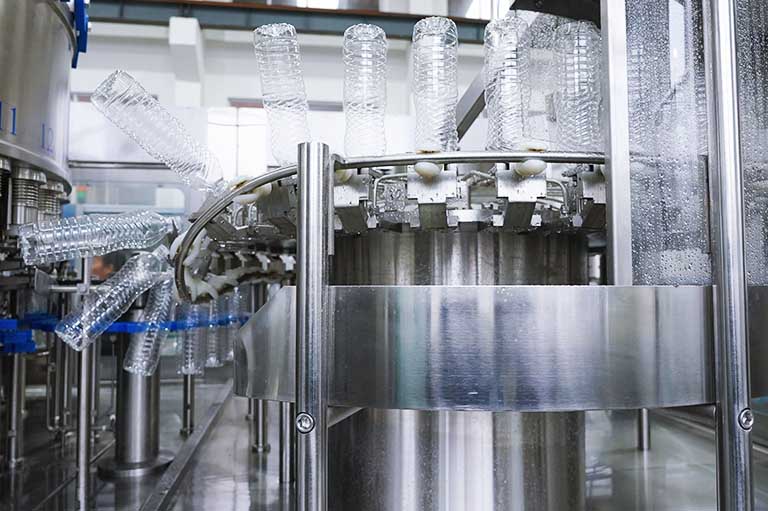

1.Washing Parts
– Into bottle way is air conveyor direct connection with bottle dial.
– All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.
– 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
– 304/316 stainless steel washing pump make the machine more durable.
2.Filling Parts
– 304/316 Stainless steel high precision filling nozzle- Filling volume adjustable in fine rank, same liquid level after filling
– All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
– 304/316 stainless steel filling pump
– Efficient spray nozzle rinse thoroughly and save water for flushing
3.Capping Parts
– Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
– All 304/316 stainless steel construction
– No bottle no capping
– Automatic stop when lack of bottle
– Capping effect is stable and reliable, Defective rate ≤0.2%
4.Conveyor System
Air Conveyor
– Air conveyor is fixed on the floor, with fan installed on the top.
– Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles.
– Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
– All are made of stainless steel SUS 304 /316.
– Rack made by high quality carbon steel welded.
Flat Conveyor
– Energy saving. High efficient. Adapt to customer factory layout
– Special lubrication system, keep products clean, health, safety
– Extended service life
– Electric eyes design keep whole line running safety and quickly
– Overload protection mechanism to effectively ensure the safety of the machine.
Production Line Technical Parameters
- Automatic Bottle Blow Molding Machine
- Washing,filling,capping,3in1 Machine
- Cap Washing On Line
- Cap Elevator
- Bottle Air Dryer
- Rotary OPP Labeling Machine
- Automatic Shrink Wrapping Packing Machine
- Auto Palletizer
